High Voltage Schottky Diode (3.3kV - 11A - 10ns)

Name: High Voltage Schottky Diode (3.3kV - 11A - 10ns)
Brand: Resonexus
Price: 60 EUR
Availability: InStock
Rating: 5 (1 reviews)

5 / 5 1 review

Brand: Resonexus
Product Code: SD_3300V
Tariff No: 8541.10.00.80
Country of Origin: Norway (NO)
Availability: 4 in stock

€60.00

Available Options

Extras

Heat sink for diode (+€5.00)

Quantity

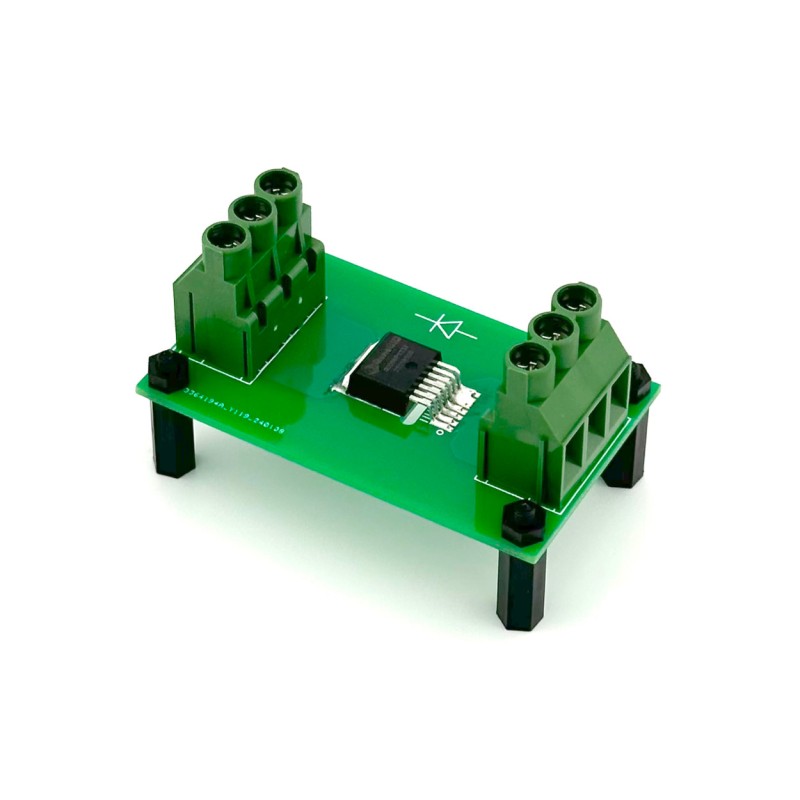

Introducing our High Voltage Schottky Diode Board, a robust and essential component for your high-voltage projects. This board is designed to bring superior performance and high voltage handling to your experiments and applications:

Exceptional Voltage Rating: At the heart of this board is a high-performance Schottky diode (GC05MPS33J), capable of handling voltages up to 3300V. This makes it one of the highest voltage-rated Schottky diodes available on the open market.
Ultra-Fast Switching Time: Engineered for efficiency, this Schottky Diode boasts a switching time of less than 10 ns, making it ideal for applications requiring rapid response.
Convenient Connectivity: The board is equipped with screw terminals that can accommodate cables up to AWG 10 size. This feature ensures easy and secure connections for high-current applications.
Superior Diode Performance: The GC05MPS33J diode is known for its exceptional performance characteristics. It offers efficient and reliable operation, making it ideal for a wide range of high-voltage applications

Our High Voltage Schottky Diode Board is a high-quality solution for those requiring reliable, high-voltage diode performance. Whether you're working on power conversion, rectification, or custom high-voltage circuitry, this board is designed to meet your needs with precision and reliability.

Technical Specification:

Repetitive Peak Reverse Voltage	3300 V
Continuous Forward Current	11 A (Tc < 100°C)
Non-Repetitive Peak Forward Surge Current	250 A
Non-Repetitive Avalanche Energy	100 mJ
Diode Ruggedness	200 V/ns
Max Power Dissipation	178 W
Diode Forward Voltage	Typ. 2.4 V
Total Capacitive Charge	42 nC
Switching Time	< 10 ns

The datasheet with additional specifications for the diode (GC05MPS33J) can be found here.

Technical
Repetitive Peak Reverse Voltage	3.3 kV
Continuous Forward Current	11 A
Reverse Recovery Time	< 10 ns
Non-Repetitive Peak Forward Surge Current	250 A
Forward Voltage Drop	2.4 V
Maximum Reverse Current	50 uA
Junction Capacitance	14 pF
