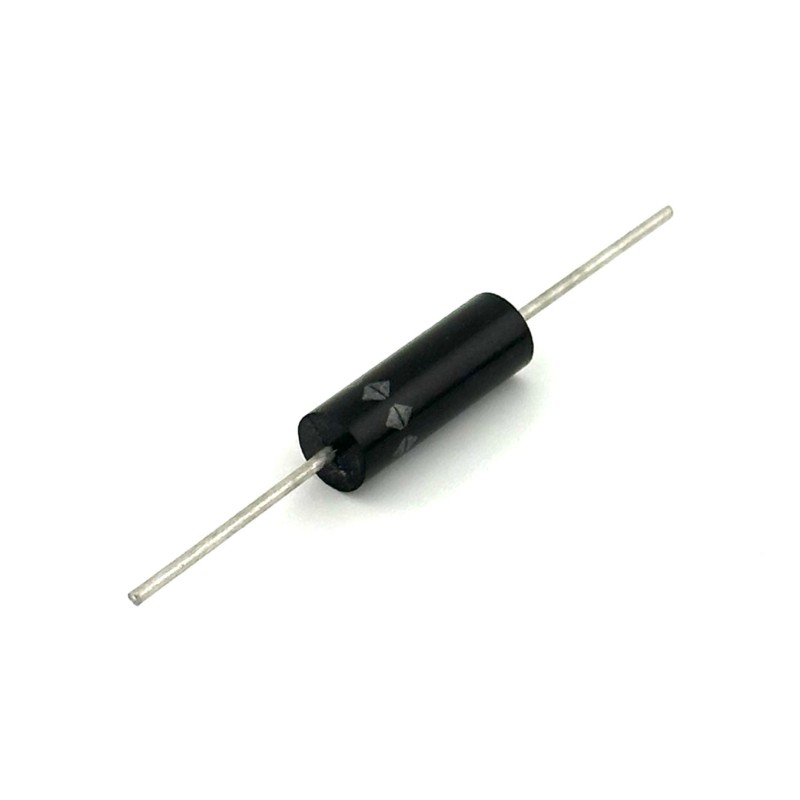

High Voltage Diode (15kV - 300mA - 35ns)
- Product Code: HVD_15_300_35
- Tariff No: 8541.10.00.40
- Country of Origin: CN
- Availability: In Stock
-
€35.00
Discover our next-generation high voltage diode, designed for even higher performance and reliability in demanding high-frequency and high-voltage applications. With a voltage handling capability of up to 15kV and a continuous forward current of 300mA, this diode is built to deliver stable operation while offering improved speed and surge tolerance compared to previous models.
A key enhancement is its ultra-fast reverse recovery time of just 35 nanoseconds — a significant improvement over earlier versions. This makes it ideal for use in high-frequency switching power supplies, Cockcroft-Walton multipliers, and resonant circuits operating in the MHz range, where fast rectification and minimal switching losses are essential.
In addition to its speed, the diode now offers a 30A surge current capability, providing greater protection and resilience under transient overloads. This improved surge handling ensures stable operation and long-term durability even under challenging electrical conditions.
Perfectly suited for high voltage multipliers, laser power supplies, and medical electronics, this diode represents the next step in fast, reliable, and efficient high-voltage rectification technology.
Technical Specification:
| Repetitive Peak Reverse Voltage | 15 kV |
| Continuous Forward Current | 300 mA (Tc < 55°C) |
| Reverse Recovery Time (Maximum) | 35 ns |
| Non-Repetitive Peak Forward Surge Current | 30 A |
| Forward Voltage Drop (Maximum) | 19.5 V |
| Maximum Reverse Current | 0.5 uA (Tc = 25°C) |
| Technical | |
| Repetitive Peak Reverse Voltage | 15 kV |
| Continuous Forward Current | 300 mA |
| Reverse Recovery Time | 35 ns |
| Non-Repetitive Peak Forward Surge Current | 30 A |
| Forward Voltage Drop | 19.5 V |
| Maximum Reverse Current | 0.5 uA |
