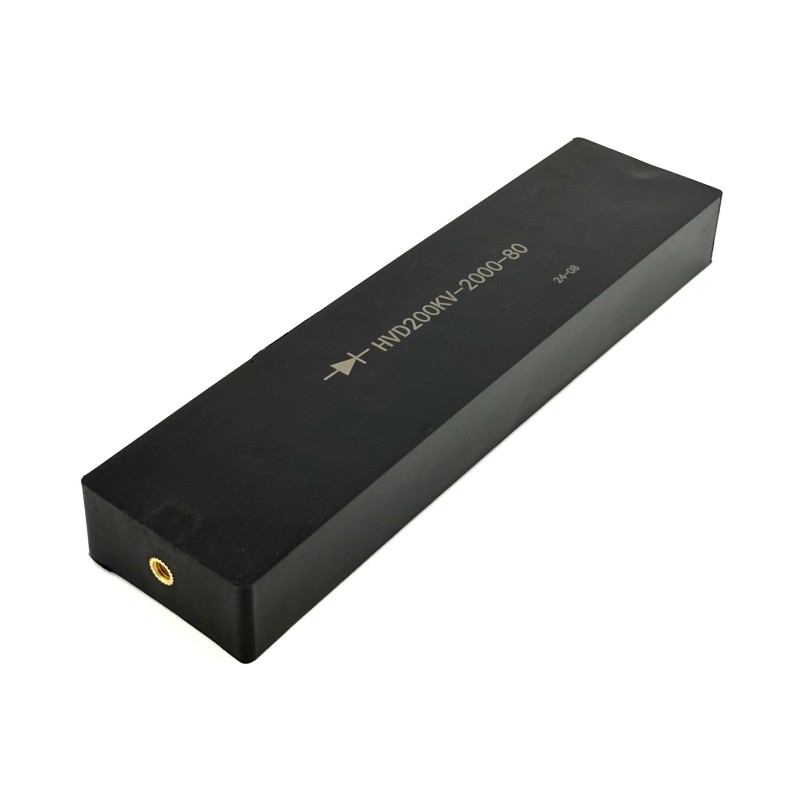

High Voltage Diode (200kV - 2A - 80ns)

High Voltage Diode (200kV - 2A - 80ns)

  • Brand: Devrima
  • Product Code: HVD_200_2000_80
  • Availability: In Stock
  • €190.00



Enhance your high voltage systems with our advanced high voltage diode, designed for peak performance in the most demanding applications. This diode offers an impressive voltage rating of 200kV and is engineered to handle an average current of 2A, with the capability to withstand surge currents up to 80A. Its ultra-fast recovery time of 80ns ensures minimal power loss, making it ideal for high-frequency operations.

Built for durability and reliability, this high voltage diode excels in a wide array of applications, including high voltage multiplier circuits, electrostatic precipitators, pulse rectifier circuits, and general-purpose high voltage rectification. Its robust design and exceptional surge current capability make it a vital component in both industrial and laboratory environments, ensuring your systems maintain peak performance under high stress conditions.

Whether you need to power advanced electrical equipment or enhance the precision of scientific instruments, this diode delivers unmatched efficiency and reliability. With its high current capacity and fast recovery characteristics, it is the go-to choice for engineers and technicians seeking to optimize their high voltage applications.

Technical Specification:

Repetitive Peak Reverse Voltage 200 kV
Continuous Forward Current 2 A
Reverse Recovery Time (Maximum) 80 ns
Non-Repetitive Peak Forward Surge Current 80 A
Forward Voltage Drop (Maximum) 300 V
Maximum Reverse Current 5.0 uA (Tc = 25°C)
Terminal Connections M6 Screw
Dimensions (LxWxH) 240x60x30 mm
Technical
Repetitive Peak Reverse Voltage 200 kV
Continuous Forward Current 2 A
Reverse Recovery Time 80 ns
Non-Repetitive Peak Forward Surge Current 80 A
Forward Voltage Drop 300 V
Maximum Reverse Current 5.0 uA
Terminal Connections M6 Screw
